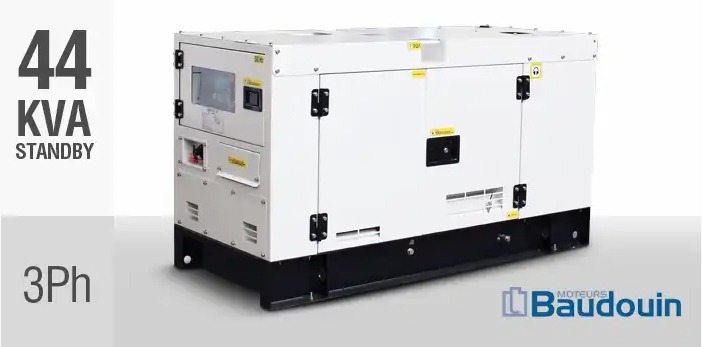

40kVA BAUDOUIN Generator - BPD40S3-B
PERFORMANCE
| Prime power (PRP) | 40 kVA |
| Standby power (LTP) | 44 kVA |
| Power factor | 0.8 φ |
| Frequency | 50 Hz |
| Voltage | 380 V |
GENERAL ENGINE DATA
| Engine brand | Baudouin |
| Engine model | 4M06G44/5 |
| Engine Type | 4-cylinder 4-stroke |
| Prime Power (kW) | 37 |
| Standby Power (kW) | 41 |
| Air intake type | Turbocharged |
| Cooling mode | Water cooling |
| Governor mode | Mechanical Pump |
| Bore x Stroke(mm) | 89 x 92 |
| Compression ratio | 17.5:1 |
| Rated speed (RPM) | 1500 |
| Displacement(L) | 2.3 |
| Starter Motor | 3kW |
| Description | Diesel Generator |
GENERAL DATA
| Controller Brand | DeepSea |
| Controller Model | DSE6120 |
| Structure Type | Silent |
| Noise Level (dBA @ 7m) | 72 |
| AVR | Constant voltage AVR |
| Excitation Mode | Self Excitation |
| Fuel Type | Diesel |
| Recommended Oil | 15W40 |
| ISO9001 Certified | Yes |
| CE Certified | Yes |
ALTERNATOR DATA
| Alternator Brand | DPK |
| Alternator Model | DPC184J |
| Rated Current (A) | 66 Amps Per Phase |
| Pole Number | 4 |
| Phase Number | Three Phase |
SILENT CANOPY
| Canopy Material | |
| Canopy Colour | |
| Base Material | |
| Base Colour | |
DIMENSIONS & TANK
| Length | 2280 mm |
| Width | 900 mm |
| Height | 1070 mm |
| Weight | 820 kgs |
| Tank Capacity | 90 l |
| Cons. @ 50% Load | 4.7 l/h |
| Cons. @ 75% Load | 7 l/h |
| Cons. @ 100% Load | 9.5 l/h |
RECOMMENDED ATS (AUTO SWITCH)
| Model | ATS-BPD-100-3 |
| Poles | 4 |
| Phases | 3-Ph |
| Rated Current | 100A |
| IP Rating | IP54 |
STANDARD FEATURES
| Pre-Delivery Testing Filled with oil and coolant, tested under full load. | YES |
| Pre-Delivery Inspection (PDI) Full inspection of the generator | YES |
| User Manuals | Books supplied & Digital (Online) |
