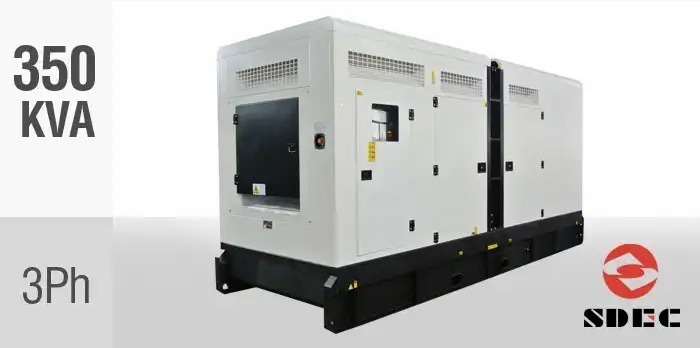

PERFORMANCE
| Prime power (PRP) | 350 kVA |
| Standby power (LTP) | 385 kVA |
| Power factor | 0.8 φ |
| Frequency | 50 Hz |
| Voltage | 380 V |
GENERAL ENGINE DATA
| Engine brand | SDEC |
| Engine model | 6ETAA11.8-G21 |
| Engine Type | In-line, 4 stroke |
| Prime Power (kW) | 307 |
| Standby Power (kW) | 338 |
| Air intake type | Turbo |
| Cooling mode | Water cooling |
| Governor mode | RSV |
| Bore x Stroke(mm) | 128x153 |
| Compression ratio | 17:1 |
| Rated speed (RPM) | 1500 |
| Displacement(L) | 11.8 |
| Alternator | 55A - 28V |
| Starter Motor | 7.5kW - 24V |
| Description | Diesel Generator |
BATTERY DATA
| Brand | Fengfan |
| Model | 6-QW-240min(800)-R |
| Voltage | 12V |
| Quantity | 2 |
| Capacity | 150Ah |
| Dimensions | 513*223*251 mm |
| Type | Maintenance Free |
GENERAL DATA
| Controller Brand | Datakom |
| Controller Model | D300-MK3 |
| Structure Type | Silent |
| Noise Level (dBA @ 7m) | 78 |
| AVR | Constant voltage AVR |
| Excitation Mode | Self Excitation |
| Fuel Type | Diesel |
| Recommended Oil | L-ECD grade or 15W40 |
| ISO9001 Certified | Yes |
| CE Certified | Yes |
ALTERNATOR DATA
| Alternator Brand | DPK |
| Alternator Model | DPC314F |
| Rated Current (A) | 584 Amps Per Phase |
| Pole Number | 4 |
| Phase Number | Three Phase |
SILENT CANOPY
| Canopy Material | Mild Steel |
| Canopy Colour | White (RAL9010) |
| Base Material | Mild Steel |
| Base Colour | Black |
DIMENSIONS & TANK
| Length | 4050 mm |
| Width | 1450 mm |
| Height | 2150 mm |
| Weight | 3936 kgs |
| Tank Capacity | 606 l |
| Cons. @ 50% Load | 33.0 l/h |
| Cons. @ 75% Load | 50.0 l/h |
| Cons. @ 100% Load | 65.9 l/h |
RECOMMENDED ATS (AUTO SWITCH)
| Model | ATS-BPD-630-3 |
| Poles | 4 |
| Phases | 3-Ph |
| Rated Current | 630A |
| IP Rating | IP54 |
STANDARD FEATURES
| Pre-Delivery Testing Filled with oil and coolant, tested under full load. | YES |
| Pre-Delivery Inspection (PDI) Full inspection of the generator | YES |
| User Manuals | Books supplied & Digital (Online) |
| 24 Hour Telephonic Support | YES |
OPTIONAL EXTRAS
| Remote Monitoring via GSM, Wifi or Ethernet |
| Automatic Transfer Switch (ATS) |
| Manual Transfer Switch |
| Bulk Diesel Tank |
