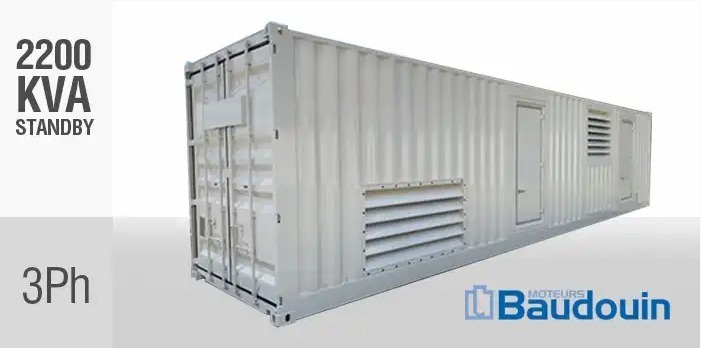

2000kVA BAUDOUIN Generator – BPD2000S3-B
PERFORMANCE
| Prime power (PRP) | 2000 kVA |
| Standby power (LTP) | 2200 kVA |
| Power factor | 0.8 φ |
| Frequency | 50 Hz |
| Voltage | 380 V |
GENERAL ENGINE DATA
| Engine brand | Baudouin |
| Engine model | 16M33G2250/5 |
| Engine Type | 16-cylinder 4-stroke |
| Prime Power (kW) | 1800 |
| Standby Power (kW) | 1980 |
| Air intake type | Turbocharged and Aftercooled |
| Cooling mode | Water cooling |
| Governor mode | Electronic |
| Bore x Stroke(mm) | 150 x 185 |
| Compression ratio | 14:1 |
| Rated speed (RPM) | 1500 |
| Displacement(L) | 52.3 |
| Starter Motor | 2 x 8.5kW |
| Description | Diesel Generator |
GENERAL DATA
| Controller Brand | DeepSea |
| Controller Model | DSE7230 |
| Structure Type | Silent |
| Noise Level (dBA @ 7m) | 86 |
| AVR | Constant voltage AVR |
| Excitation Mode | Self Excitation |
| Fuel Type | Diesel |
| Recommended Oil | 15W40 |
| ISO9001 Certified | Yes |
| CE Certified | Yes |
ALTERNATOR DATA
| Alternator Brand | Leroy Somer |
| Alternator Model | LSA 52.3 S6 |
| Rated Current (A) | 3342 Amps Per Phase |
| Pole Number | 4 |
| Phase Number | Three Phase |
SILENT CANOPY
| Canopy Material | Steel |
| Canopy Colour | White |
| Base Material | Steel |
| Base Colour | White |
DIMENSIONS & TANK
| Length | 12192 mm |
| Width | 2438 mm |
| Height | 2896 mm |
| Weight | 24100 kgs |
| Tank Capacity | 4000 l |
RECOMMENDED ATS (AUTO SWITCH)
STANDARD FEATURES
| Pre-Delivery Testing Filled with oil and coolant, tested under full load. | YES |
| Pre-Delivery Inspection (PDI) Full inspection of the generator | YES |
| User Manuals | Books supplied & Digital (Online) |
| 24 Hour Telephonic Support | YES |
OPTIONAL EXTRAS
| Remote Control and Monitoring |
| Colour Options |
| External Fuel Tank (Built to Size) |
| External ATS |
| Tropical Radiator |
| Additional Sound Baffling |
