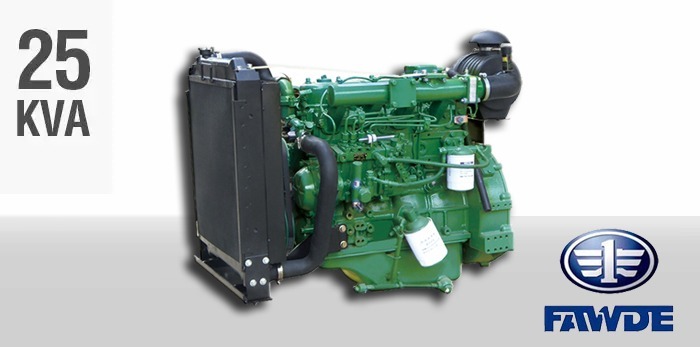

25kVA FAWDE Engine - 4DW92-35D
OUTPUT & CONSUMPTION
| Rated power(without fan)(kW) | 26 |
| Standby power(without fan)(kW) | 29 |
| Fuel consumption(g/kWh) | 230 |
| Oil consumption(L/h) | 0.04 |
| Steady state speed regulation(%) | <5 |
| Oil capacity including filter(L) | 8 |
| Emission compliant | Stage II |
| The flywheel shell interface | SAE4 |
| The flywheel shell interface | Flywheel for 7.5" & 10" flexible coupling |
DIMENSIONS
| Dry weight of base(kg) | 240 |
| Dry weight of Gen Pac(kg) | 260 |
| Overall dimension(base)(mm) | 750x600x735 |
| Overall dimension(G.P)(mm) | 1120x810x760 |
LIQUIDS & HEAT
| Fan consumption(kW) | 1.8 |
| 27°C air consumption(m³/min) | 2.1 |
| Heat rejection of exhaust(kW) | 20.6 |
| Exhaust gas temperature after turbine(°C) | 450 |
| Exhaust gas flow(m³/min) | 5.9 |
| Heat rejection from engine(kW) | 1.6 |
| Heat rejection of coolant(kW) | 16.9 |
| Base configuration | Standard configuration(add on the base) |
| Engine with fan | Intake and exhaust sysyte: Air filter and connecting pipes;Connecting flang of exhaust pipe |
| Cooling system | Cooling system: Radiator with connecting pipes;Fan guard;Belt guard |
